Séria E4Q.58/H4Q.58

Energetická reťaz igus séria E4Q.58/H4Q.58
OPÝTAŤ SA / ODOSLAŤ DOPYT

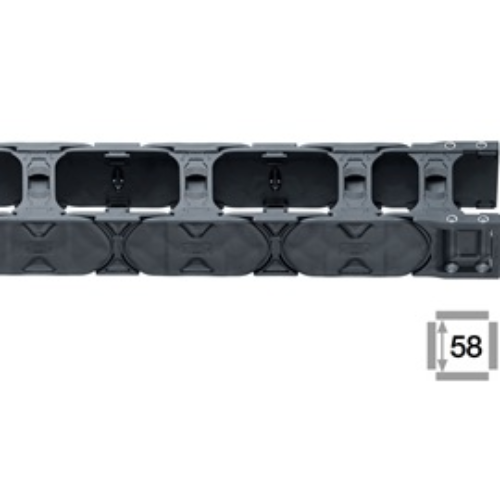

Energetická reťaz e-chain® séria E4Q.58/H4Q.58

  • O 40 % rýchlejšie plnenie: priečka na otváranie a zatváranie bez použitia náradia
  • Deliace priečky (separátory): pevne pripojené k energetickému reťazu
  • O 10 % nižšia hmotnosť: odľahčovacie výrezy v materiáli pre optimalizáciu hmotnosti a pevnosti
  • Vyššia pevnosť: vertikálne a horizontálne umiestnené dorazy pre lepšiu stabilitu
  • O 17 dB nižšia hlučnosť: voliteľné odhlučnenie je možné kedykoľvek dodatočne namontovať

Certifikáty a normy: RoHS 2 2011_65_EU REACH

série E4Q.58_H4Q.58 Vnútorná šírky Bi: 100 až 500 mm
Polomery ohybu R: 135 až 500 mm
Rozteč: 91 mm na článok = 11 článkov / m
E4Q.58_H4Q.58 diagram

Samonosné pojazdy
Závislosť samonosnej dĺžky od dodatočného zaťaženia.
Os X: Samonosná dĺžka v m: FLB/FLG
Os Y: Dodatočné zaťaženie v kg/m
Menšie merítko: dĺžka pojazdu S v m
FLB = Samonosná dĺžka bez priehybu hornej vetvy
FLG = Samonosná dĺžka s max. povoleným priehybom

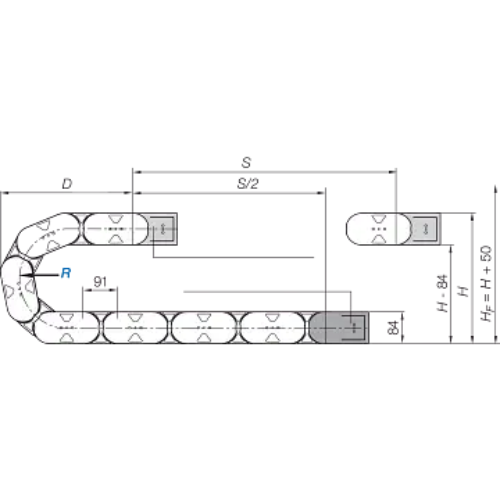

série E4Q.58_H4Q.58 výkres A = pohyblivý koniec
B = pevný koniec
Rozteč: 91 mm
Počet článkov na m: 11
Pojazd: S
Dĺžka reťaze: LK= S/2 + K
R 135 150 175 200 240 250 300 350 400 450 500
H 354 384 434 484 564 584 684 784 884 984 1084
D 314 329 354 379 419 429 479 529 579 629 679
K 610 655 735 815 940 970 1125 1285 1440 1600 1755
Kedy použiť: Kedy zvoliť inú:
  • ak sa vyžaduje robustná reťaz e-chain® s vnútornou výškou 58 mm
  • ak je potrebná jednoduchá montáž reťaze e-chain® bez náradia
  • ak chcete inovatívny, bionický design
  • pre samonosné dĺžky až do 5,0 m a hmotnosť náplne až do 65 kg/m
  • pre dĺžky pojazdu do 400 m
  • vhodná aj pre bočne uložené, stojace a zavesené aplikácie
  • ak je požadovaná plne uzatovrená/krytovaná reťaz e-tube s podobnou pevnosťou a veľkosťou
    » séria R4.56
  • ak musí reťaz e-chain® spĺňať normu ISO triedy 1 pre čisté priestory
    » séria E61.62
  • ak sa vyžaduje ľahká, cenovo výhodná reťaz e-chain®
    » séria E4.64L

Objednávací kľúč

🔑 Objednávací kľúč E4Q.58
 🔑 Objednávací kľúč H4Q.58
