Energetická reťaz igus séria E4Q.82/H4Q.82
OPÝTAŤ SA / ODOSLAŤ DOPYT

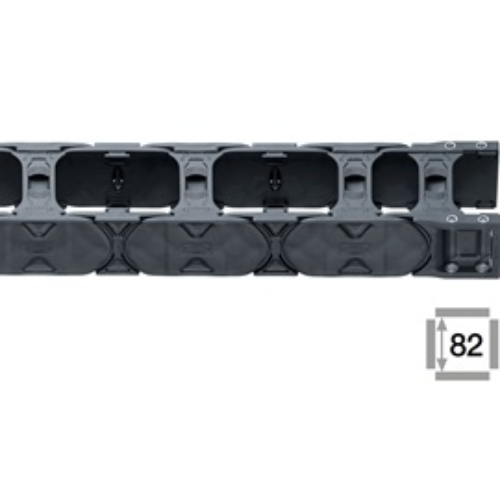

Energetická reťaz e-chain® séria E4Q.82/H4Q.82

  • O 40 % rýchlejšie plnenie: priečka na otváranie a zatváranie bez použitia náradia
  • Deliace priečky (separátory): pevne pripojené k energetickému reťazu
  • O 10 % nižšia hmotnosť: odľahčovacie výrezy v materiáli pre optimalizáciu hmotnosti a pevnosti
  • Vyššia pevnosť: vertikálne a horizontálne umiestnené dorazy pre lepšiu stabilitu
  • O 17 dB nižšia hlučnosť: voliteľné odhlučnenie je možné kedykoľvek dodatočne namontovať

Certifikáty a normy: RoHS 2 2011_65_EU REACH

série E4Q.82_H4Q.82 Vnútorná šírka Bi: 100 až 500 mm
Polomer ohybu R: 150 až 500 mm
Rozteč: 111 mm na článok = 11 článkov / m
série E4Q.82_H4Q.82 diagram

Samonosné pojazdy
Závislosť samonosnej dĺžky od dodatočného zaťaženia.
Os X: Samonosná dĺžka v m: FLB/FLG
Os Y: Dodatočné zaťaženie v kg/m
Menšie merítko: dĺžka pojazdu S v m
FLB = Samonosná dĺžka bez priehybu hornej vetvy
FLG = Samonosná dĺžka s max. povoleným priehybom

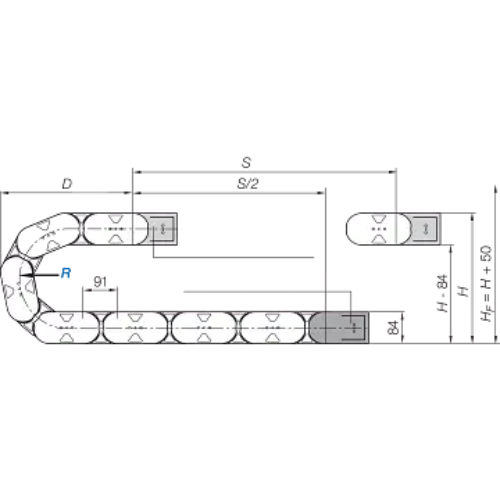

série E4Q.82_H4Q.82 výkres A = pohyblivý koniec
B = pevný koniec
Rozteč: 91 mm
Počet článkov na m: 11
Pojazd: S
Dĺžka reťaze: LK= S/2 + K
R 150 175 200 250 300 350 400 450 500 600 1000
H 408 458 508 608 708 808 908 1008 1108 1308 2108
D 371 396 421 471 521 571 621 671 721 821 1221
K 695 775 855 1010 1165 1325 1480 1640 1795 2110 3365
Kedy použiť: Kedy zvoliť inú:
  • ak sa vyžaduje robustná reťaz e-chain® s vnútornou výškou 82 mm
  • ak je potrebná jednoduchá montáž reťaze e-chain® bez náradia
  • ak chcete inovatívny, bionický design
  • pre samonosné dĺžky až do 6,1 m a hmotnosť náplne až do 85 kg/m
  • pre dĺžky pojazdu do 400 m
  • vhodná aj pre bočne uložené, stojace a zavesené aplikácie
  • ak je požadovaná extrémne tichá reťaz (≤ 46 dB(A)) s veľmi nízkymi vibráciami
    » séria E6.80
  • ak sa vyžaduje ešte vyššia stabilita
    » séria 5050HD
  • pre cenovo dostupnejší kompromis medzi cenou a stabilitou
    » séria 15050
