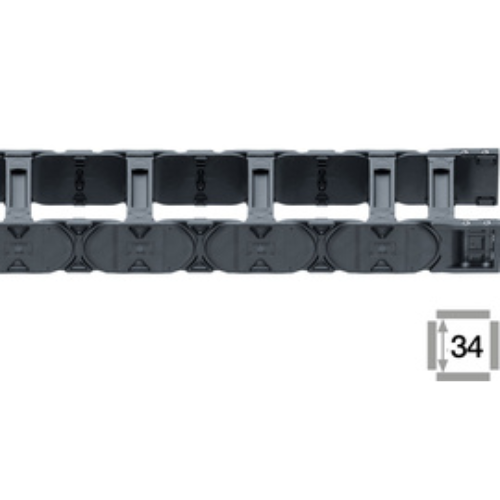

Energetická reťaz e-chain®séria E4Q.34/H4Q.34

  • O 40 % rýchlejšie plnenie: priečka na otváranie a zatváranie bez použitia náradia
  • Deliace priečky (separátory): pevne pripojené k energetickému reťazu
  • O 10 % nižšia hmotnosť: odľahčovacie výrezy v materiáli pre optimalizáciu hmotnosti a pevnosti
  • Vyššia pevnosť: vertikálne a horizontálne umiestnené dorazy pre lepšiu stabilitu
  • O 17 dB nižšia hlučnosť: voliteľné odhlučnenie je možné kedykoľvek dodatočne namontovať

Certifikáty a normy: RoHS 2 2011_65_EU REACH

série E4Q.34_H4Q.34 Vnútorná šírka Bi: 75 až 300 mm
Polomer ohybu R: 63 až 300 mm
Rozteč: 56 mm
série E4Q.34_H4Q.34 diagram

Samonosné pojazdy
Závislosť samonosnej dĺžky od dodatočného zaťaženia.
Os X: Samonosná dĺžka v m: FLB/FLG
Os Y: Dodatočné zaťaženie v kg/m
Menšie merítko: dĺžka pojazdu S v m
FLB = Samonosná dĺžka bez priehybu hornej vetvy
FLG = Samonosná dĺžka s max. povoleným priehybom

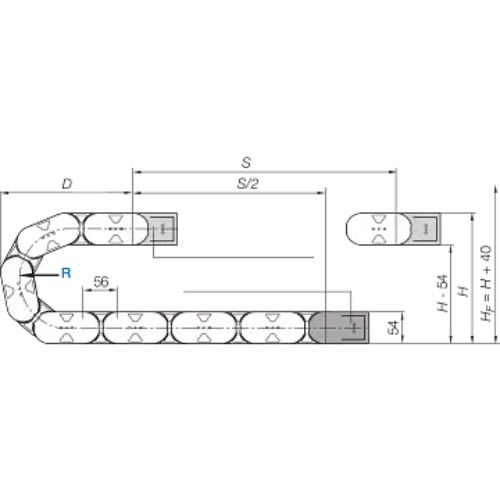

série E4Q.34_H4Q.34 výkres A = Pohyblivý koniec
B = Pevný koniec
Rozteč: 56 mm
Počet článkov na m: 18
Pojazd: S
Dĺžka reťaze = S/2 + K
R 063 075 100 125 150 175 200 220 250 300
H 180 204 254 304 354 404 454 494 554 654
D 174 186 211 236 261 286 311 331 361 411
K 310 350 430 505 585 665 745 805 900 1055
Kedy použiť: Kedy zvoliť inú:
  • ak sa vyžaduje robustná reťaz e-chain® s vnútornou výškou 34 mm
  • ak je potrebná jednoduchá montáž reťaze e-chain® bez náradia
  • ak chcete inovatívny, bionický design
  • pre samonosné dĺžky až do 3,5 m a hmotnosť náplne až do 20 kg/m
  • pre dĺžky pojazdu do 200 m
  • vhodná aj pre bočne uložené, stojace a zavesené aplikácie
  • ak je požadovaná plne uzatovrená/krytovaná reťaz e-tube s podobnou pevnosťou a veľkosťou
    » séria R4.32
  • ak musí reťaz e-chain® spĺňať normu ISO triedy 1 pre čisté priestory
    » séria E61.29
  • ak sa vyžaduje ľahká, cenovo výhodná reťaz e-chain®
    » séria E4.38L

Objednávací kľúč

🔑 Objednávací kľúč E4Q.34 🔑 Objednávací kľúč H4Q.34
E4Q.34.075.063.0 H4Q.34.075.063.0
E4Q.34.075.075.0 H4Q.34.075.075.0
E4Q.34.075.100.0 H4Q.34.075.100.0
E4Q.34.075.125.0 H4Q.34.075.125.0
E4Q.34.075.150.0 H4Q.34.075.150.0
E4Q.34.075.175.0 H4Q.34.075.175.0
E4Q.34.075.200.0 H4Q.34.075.200.0
E4Q.34.075.220.0 H4Q.34.075.220.0
E4Q.34.075.250.0 H4Q.34.075.250.0
E4Q.34.075.300.0 H4Q.34.075.300.0
E4Q.34.087.063.0 H4Q.34.087.063.0
E4Q.34.087.075.0 H4Q.34.087.075.0
E4Q.34.087.100.0 H4Q.34.087.100.0
E4Q.34.087.125.0 H4Q.34.087.125.0
E4Q.34.087.150.0 H4Q.34.087.150.0
E4Q.34.087.175.0 H4Q.34.087.175.0
E4Q.34.087.200.0 H4Q.34.087.200.0
E4Q.34.087.220.0 H4Q.34.087.220.0
E4Q.34.087.250.0 H4Q.34.087.250.0
E4Q.34.087.300.0 H4Q.34.087.300.0
E4Q.34.100.063.0 H4Q.34.100.063.0
E4Q.34.100.075.0 H4Q.34.100.075.0
E4Q.34.100.100.0 H4Q.34.100.100.0
E4Q.34.100.125.0 H4Q.34.100.125.0
E4Q.34.100.150.0 H4Q.34.100.150.0
E4Q.34.100.175.0 H4Q.34.100.175.0
E4Q.34.100.200.0 H4Q.34.100.200.0
E4Q.34.100.220.0 H4Q.34.100.220.0
E4Q.34.100.250.0 H4Q.34.100.250.0
E4Q.34.100.300.0 H4Q.34.100.300.0
E4Q.34.100GSC.250.0
E4Q.34.108.063.0 H4Q.34.108.063.0
E4Q.34.108.075.0 H4Q.34.108.075.0
E4Q.34.108.100.0 H4Q.34.108.100.0
E4Q.34.108.125.0 H4Q.34.108.125.0
E4Q.34.108.150.0 H4Q.34.108.150.0
E4Q.34.108.175.0 H4Q.34.108.175.0
E4Q.34.108.200.0 H4Q.34.108.200.0
E4Q.34.108.220.0 H4Q.34.108.220.0
E4Q.34.108.250.0 H4Q.34.108.250.0
E4Q.34.108.300.0 H4Q.34.108.300.0
E4Q.34.108GSC.200.0
E4Q.34.112.063.0 H4Q.34.112.063.0
E4Q.34.112.075.0 H4Q.34.112.075.0
E4Q.34.112.100.0 H4Q.34.112.100.0
E4Q.34.112.125.0 H4Q.34.112.125.0
E4Q.34.112.150.0 H4Q.34.112.150.0
E4Q.34.112.175.0 H4Q.34.112.175.0
E4Q.34.112.200.0 H4Q.34.112.200.0
E4Q.34.112.220.0 H4Q.34.112.220.0
E4Q.34.112.250.0 H4Q.34.112.250.0
E4Q.34.112.300.0 H4Q.34.112.300.0
E4Q.34.125.063.0 H4Q.34.125.063.0
E4Q.34.125.075.0 H4Q.34.125.075.0
E4Q.34.125.100.0 H4Q.34.125.100.0
E4Q.34.125.125.0 H4Q.34.125.125.0
E4Q.34.125.150.0 H4Q.34.125.150.0
E4Q.34.125.175.0 H4Q.34.125.175.0
E4Q.34.125.200.0 H4Q.34.125.200.0
E4Q.34.125.220.0 H4Q.34.125.220.0
E4Q.34.125.250.0 H4Q.34.125.250.0
E4Q.34.125.300.0 H4Q.34.125.300.0
E4Q.34.137.063.0 H4Q.34.137.063.0
E4Q.34.137.075.0 H4Q.34.137.075.0
E4Q.34.137.100.0 H4Q.34.137.100.0
E4Q.34.137.125.0 H4Q.34.137.125.0
E4Q.34.137.150.0 H4Q.34.137.150.0
E4Q.34.137.175.0 H4Q.34.137.175.0
E4Q.34.137.200.0 H4Q.34.137.200.0
E4Q.34.137.220.0 H4Q.34.137.220.0
E4Q.34.137.250.0 H4Q.34.137.250.0
E4Q.34.137.300.0 H4Q.34.137.300.0
E4Q.34.150.063.0 H4Q.34.150.063.0
E4Q.34.150.075.0 H4Q.34.150.075.0
E4Q.34.150.100.0 H4Q.34.150.100.0
E4Q.34.150.125.0 H4Q.34.150.125.0
E4Q.34.150.150.0 H4Q.34.150.150.0
E4Q.34.150.175.0 H4Q.34.150.175.0
E4Q.34.150.200.0 H4Q.34.150.200.0
E4Q.34.150.220.0 H4Q.34.150.220.0
E4Q.34.150.250.0 H4Q.34.150.250.0
E4Q.34.150.300.0 H4Q.34.150.300.0
E4Q.34.162.063.0 H4Q.34.162.063.0
E4Q.34.162.075.0 H4Q.34.162.075.0
E4Q.34.162.100.0 H4Q.34.162.100.0
E4Q.34.162.125.0 H4Q.34.162.125.0
E4Q.34.162.150.0 H4Q.34.162.150.0
E4Q.34.162.175.0 H4Q.34.162.175.0
E4Q.34.162.200.0 H4Q.34.162.200.0
E4Q.34.162.220.0 H4Q.34.162.220.0
E4Q.34.162.250.0 H4Q.34.162.250.0
E4Q.34.162.300.0 H4Q.34.162.300.0
E4Q.34.168.063.0 H4Q.34.168.063.0
E4Q.34.168.075.0 H4Q.34.168.075.0
E4Q.34.168.100.0 H4Q.34.168.100.0
E4Q.34.168.125.0 H4Q.34.168.125.0
E4Q.34.168.150.0 H4Q.34.168.150.0
E4Q.34.168.175.0 H4Q.34.168.175.0
E4Q.34.168.200.0 H4Q.34.168.200.0
E4Q.34.168.220.0 H4Q.34.168.220.0
E4Q.34.168.250.0 H4Q.34.168.250.0
E4Q.34.168.300.0 H4Q.34.168.300.0
E4Q.34.175.063.0 H4Q.34.175.063.0
E4Q.34.175.075.0 H4Q.34.175.075.0
E4Q.34.175.100.0 H4Q.34.175.100.0
E4Q.34.175.125.0 H4Q.34.175.125.0
E4Q.34.175.150.0 H4Q.34.175.150.0
E4Q.34.175.175.0 H4Q.34.175.175.0
E4Q.34.175.200.0 H4Q.34.175.200.0
E4Q.34.175.220.0 H4Q.34.175.220.0
E4Q.34.175.250.0 H4Q.34.175.250.0
E4Q.34.175.300.0 H4Q.34.175.300.0
E4Q.34.187.063.0 H4Q.34.187.063.0
E4Q.34.187.075.0 H4Q.34.187.075.0
E4Q.34.187.100.0 H4Q.34.187.100.0
E4Q.34.187.125.0 H4Q.34.187.125.0
E4Q.34.187.150.0 H4Q.34.187.150.0
E4Q.34.187.175.0 H4Q.34.187.175.0
E4Q.34.187.200.0 H4Q.34.187.200.0
E4Q.34.187.220.0 H4Q.34.187.220.0
E4Q.34.187.250.0 H4Q.34.187.250.0
E4Q.34.187.300.0 H4Q.34.187.300.0
E4Q.34.200.063.0 H4Q.34.200.063.0
E4Q.34.200.075.0 H4Q.34.200.075.0
E4Q.34.200.100.0 H4Q.34.200.100.0
E4Q.34.200.125.0 H4Q.34.200.125.0
E4Q.34.200.150.0 H4Q.34.200.150.0
E4Q.34.200.175.0 H4Q.34.200.175.0
E4Q.34.200.200.0 H4Q.34.200.200.0
E4Q.34.200.220.0 H4Q.34.200.220.0
E4Q.34.200.250.0 H4Q.34.200.250.0
E4Q.34.200.300.0 H4Q.34.200.300.0
E4Q.34.225.063.0 H4Q.34.225.063.0
E4Q.34.225.075.0 H4Q.34.225.075.0
E4Q.34.225.100.0 H4Q.34.225.100.0
E4Q.34.225.125.0 H4Q.34.225.125.0
E4Q.34.225.150.0 H4Q.34.225.150.0
E4Q.34.225.175.0 H4Q.34.225.175.0
E4Q.34.225.200.0 H4Q.34.225.200.0
E4Q.34.225.220.0 H4Q.34.225.220.0
E4Q.34.225.250.0 H4Q.34.225.250.0
E4Q.34.225.300.0 H4Q.34.225.300.0
E4Q.34.250.063.0 H4Q.34.250.063.0
E4Q.34.250.075.0 H4Q.34.250.075.0
E4Q.34.250.100.0 H4Q.34.250.100.0
E4Q.34.250.125.0 H4Q.34.250.125.0
E4Q.34.250.150.0 H4Q.34.250.150.0
E4Q.34.250.175.0 H4Q.34.250.175.0
E4Q.34.250.200.0 H4Q.34.250.200.0
E4Q.34.250.220.0
E4Q.34.250.250.0 H4Q.34.250.250.0
E4Q.34.250.300.0 H4Q.34.250.300.0
E4Q.34.275.063.0 H4Q.34.300.063.0
E4Q.34.275.075.0
E4Q.34.275.100.0
E4Q.34.275.125.0
E4Q.34.275.150.0
E4Q.34.275.175.0
E4Q.34.275.200.0
E4Q.34.275.220.0
E4Q.34.275.250.0
E4Q.34.275.300.0
E4Q.34.300.063.0
E4Q.34.300.075.0 H4Q.34.300.075.0
E4Q.34.300.100.0 H4Q.34.300.100.0
E4Q.34.300.125.0 H4Q.34.300.125.0
E4Q.34.300.150.0 H4Q.34.300.150.0
E4Q.34.300.175.0 H4Q.34.300.175.0
E4Q.34.300.200.0 H4Q.34.300.200.0
E4Q.34.300.220.0 H4Q.34.300.220.0
E4Q.34.300.250.0 H4Q.34.300.250.0
E4Q.34.300.300.0 H4Q.34.300.300.0
E4Q.34.350.063.0 H4Q.34.350.063.0
E4Q.34.350.075.0 H4Q.34.350.075.0
E4Q.34.350.100.0 H4Q.34.350.100.0
E4Q.34.350.125.0 H4Q.34.350.125.0
E4Q.34.350.150.0 H4Q.34.350.150.0
E4Q.34.350.175.0 H4Q.34.350.175.0
E4Q.34.350.200.0 H4Q.34.350.200.0
E4Q.34.350.220.0 H4Q.34.350.220.0
E4Q.34.350.250.0 H4Q.34.350.250.0
E4Q.34.350.300.0 H4Q.34.350.300.0
E4Q.34.387.063.0 H4Q.34.387.063.0
E4Q.34.387.075.0 H4Q.34.387.075.0
E4Q.34.387.100.0 H4Q.34.387.100.0
E4Q.34.387.125.0 H4Q.34.387.125.0
E4Q.34.387.150.0 H4Q.34.387.150.0
E4Q.34.387.175.0 H4Q.34.387.175.0
E4Q.34.387.200.0 H4Q.34.387.200.0
E4Q.34.387.220.0 H4Q.34.387.220.0
E4Q.34.387.250.0 H4Q.34.387.250.0
E4Q.34.387.300.0 H4Q.34.387.300.0
