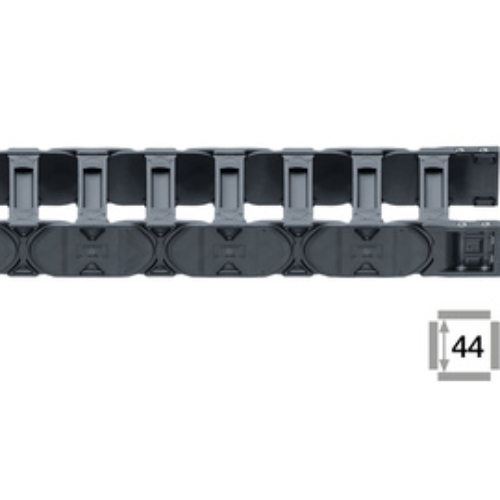

Energetická reťaz e-chain® séria E4Q.44/H4Q.44

  • O 40 % rýchlejšie plnenie: priečka na otváranie a zatváranie bez použitia náradia
  • Deliace priečky (separátory): pevne pripojené k energetickému reťazu
  • O 10 % nižšia hmotnosť: odľahčovacie výrezy v materiáli pre optimalizáciu hmotnosti a pevnosti
  • Vyššia pevnosť: vertikálne a horizontálne umiestnené dorazy pre lepšiu stabilitu
  • O 17 dB nižšia hlučnosť: voliteľné odhlučnenie je možné kedykoľvek dodatočne namontovať

Certifikáty a normy: RoHS 2 2011_65_EU REACH

série E4Q.44_H4Q.44 Vnútorná šírka Bi: 75 až 350 mm
Polomer ohybu R: 75 až 350 mm
Rozteč: 67 mm na článok = 15 článkov / m
E4Q.44_H4Q.44 diagram

Samonosné pojazdy
Závislosť samonosnej dĺžky od dodatočného zaťaženia.
Os X: Samonosná dĺžka v m: FLB/FLG
Os Y: Dodatočné zaťaženie v kg/m
Menšie merítko: dĺžka pojazdu S v m
FLB = Samonosná dĺžka bez priehybu hornej vetvy
FLG = Samonosná dĺžka s max. povoleným priehybom

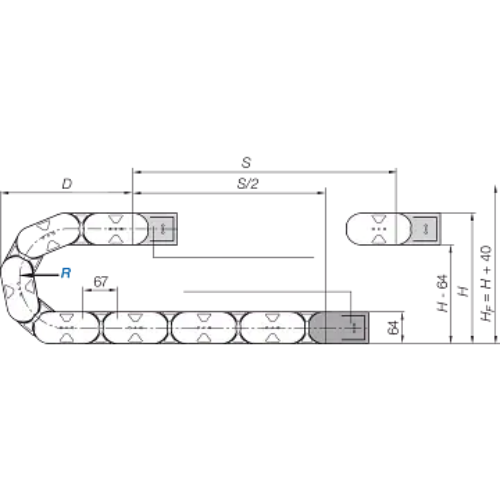

série E4Q.44_H4Q.44 výkres A = pohyblivý koniec
B = pevný koniec
Rozteč: 56 mm
Počet článkov na m: 15
Pojazd: S
Dĺžka reťaze = S/2 + K
R 075 100 115 125 150 160 175 200 250 300 350
H 214 264 294 314 364 384 414 464 564 664 764
D 208 233 248 258 283 293 308 333 383 433 483
K 370 450 500 530 610 640 685 765 920 1080 1235
Kedy použiť: Kedy zvoliť inú:
  • ak sa vyžaduje robustná reťaz e-chain® s vnútornou výškou 44 mm
  • ak je potrebná jednoduchá montáž reťaze e-chain® bez náradia
  • ak chcete inovatívny, bionický design
  • pre samonosné dĺžky až do 4,5 m a hmotnosť náplne až do 40 kg/m
  • pre dĺžky pojazdu do 300 m
  • vhodná aj pre bočne uložené, stojace a zavesené aplikácie
  • ak je požadovaná plne uzatovrená/krytovaná reťaz e-tube s podobnou pevnosťou a veľkosťou
    » séria R4.42
  • ak musí reťaz e-chain® spĺňať normu ISO triedy 1 pre čisté priestory
    » séria E61.40
  • ak sa vyžaduje ľahká, cenovo výhodná reťaz e-chain®
    » séria E4.48L

Objednávací kľúč

🔑 Objednávací kľúč E4Q.44 🔑 Objednávací kľúč H4Q.44

H4Q.44.075.075.0

H4Q.44.075.100.0

H4Q.44.075.115.0

H4Q.44.075.125.0

H4Q.44.075.150.0

H4Q.44.075.160.0

H4Q.44.075.175.0

H4Q.44.075.200.0

H4Q.44.075.250.0

H4Q.44.075.300.0

H4Q.44.075.350.0

H4Q.44.087.075.0

H4Q.44.087.100.0

H4Q.44.087.115.0

H4Q.44.087.125.0

H4Q.44.087.150.0

H4Q.44.087.160.0

H4Q.44.087.175.0

H4Q.44.087.200.0

H4Q.44.087.250.0

H4Q.44.087.300.0

H4Q.44.087.350.0

H4Q.44.100.075.0

H4Q.44.100.100.0

H4Q.44.100.115.0

H4Q.44.100.125.0

H4Q.44.100.150.0

H4Q.44.100.160.0

H4Q.44.100.175.0

H4Q.44.100.200.0

H4Q.44.100.250.0

H4Q.44.100.300.0

H4Q.44.100.350.0

H4Q.44.108.075.0

H4Q.44.108.100.0

H4Q.44.108.115.0

H4Q.44.108.125.0

H4Q.44.108.150.0

H4Q.44.108.160.0

H4Q.44.108.175.0

H4Q.44.108.200.0

H4Q.44.108.250.0

H4Q.44.108.300.0

H4Q.44.108.350.0

H4Q.44.112.075.0

H4Q.44.112.100.0

H4Q.44.112.115.0

H4Q.44.112.125.0

H4Q.44.112.150.0

H4Q.44.112.160.0

H4Q.44.112.175.0

H4Q.44.112.200.0

H4Q.44.112.250.0

H4Q.44.112.300.0

H4Q.44.112.350.0

H4Q.44.125.075.0

H4Q.44.125.100.0

H4Q.44.125.115.0

H4Q.44.125.125.0

H4Q.44.125.150.0

H4Q.44.125.160.0

H4Q.44.125.175.0

H4Q.44.125.200.0

H4Q.44.125.250.0

H4Q.44.125.300.0

H4Q.44.125.350.0

H4Q.44.137.075.0

H4Q.44.137.100.0

H4Q.44.137.115.0

H4Q.44.137.125.0

H4Q.44.137.150.0

H4Q.44.137.160.0

H4Q.44.137.175.0

H4Q.44.137.200.0

H4Q.44.137.250.0

H4Q.44.137.300.0

H4Q.44.137.350.0

H4Q.44.150.075.0

H4Q.44.150.100.0

H4Q.44.150.115.0

H4Q.44.150.125.0

H4Q.44.150.150.0

H4Q.44.150.160.0

H4Q.44.150.175.0

H4Q.44.150.200.0

H4Q.44.150.250.0

H4Q.44.150.300.0

H4Q.44.150.350.0

H4Q.44.168.075.0

H4Q.44.168.100.0

H4Q.44.168.115.0

H4Q.44.168.125.0

H4Q.44.168.150.0

H4Q.44.168.160.0

H4Q.44.168.175.0

H4Q.44.168.200.0

H4Q.44.168.250.0

H4Q.44.168.300.0

H4Q.44.168.350.0

H4Q.44.175.075.0

H4Q.44.175.100.0

H4Q.44.175.115.0

H4Q.44.175.125.0

H4Q.44.175.150.0

H4Q.44.175.160.0

H4Q.44.175.175.0

H4Q.44.175.200.0

H4Q.44.175.250.0

H4Q.44.175.300.0

H4Q.44.175.350.0
E4Q.44.187.175.0 H4Q.44.187.075.0

H4Q.44.187.100.0

H4Q.44.187.115.0

H4Q.44.187.125.0

H4Q.44.187.150.0

H4Q.44.187.160.0

H4Q.44.187.175.0
E4Q.44.187.200.0 H4Q.44.187.200.0
E4Q.44.187.250.0 H4Q.44.187.250.0
E4Q.44.187.300.0 H4Q.44.187.300.0
E4Q.44.187.350.0 H4Q.44.187.350.0
E4Q.44.200.075.0 H4Q.44.200.075.0
E4Q.44.200.100.0 H4Q.44.200.100.0
E4Q.44.200.115.0 H4Q.44.200.115.0
E4Q.44.200.125.0 H4Q.44.200.125.0
E4Q.44.200.150.0 H4Q.44.200.150.0
E4Q.44.200.160.0 H4Q.44.200.160.0
E4Q.44.200.175.0 H4Q.44.200.175.0
E4Q.44.200.200.0 H4Q.44.200.200.0
E4Q.44.200.250.0 H4Q.44.200.250.0
E4Q.44.200.300.0 H4Q.44.200.300.0
E4Q.44.200.350.0 H4Q.44.200.350.0
E4Q.44.250.075.0 H4Q.44.250.075.0
E4Q.44.250.100.0 H4Q.44.250.100.0
E4Q.44.250.115.0 H4Q.44.250.115.0
E4Q.44.250.125.0 H4Q.44.250.125.0
E4Q.44.250.150.0 H4Q.44.250.150.0
E4Q.44.250.160.0 H4Q.44.250.160.0
E4Q.44.250.175.0 H4Q.44.250.175.0
E4Q.44.250.200.0 H4Q.44.250.200.0
E4Q.44.250.250.0 H4Q.44.250.250.0
E4Q.44.250.300.0 H4Q.44.250.300.0
E4Q.44.250.350.0 H4Q.44.250.350.0
E4Q.44.300.075.0 H4Q.44.300.075.0
E4Q.44.300.100.0 H4Q.44.300.100.0
E4Q.44.300.115.0 H4Q.44.300.115.0
E4Q.44.300.125.0 H4Q.44.300.125.0
E4Q.44.300.150.0 H4Q.44.300.150.0
E4Q.44.300.160.0 H4Q.44.300.160.0
E4Q.44.300.175.0 H4Q.44.300.175.0
E4Q.44.300.200.0 H4Q.44.300.200.0
E4Q.44.300.250.0 H4Q.44.300.250.0
E4Q.44.300.300.0 H4Q.44.300.300.0
E4Q.44.300.350.0 H4Q.44.300.350.0
E4Q.44.350.075.0 H4Q.44.350.075.0
E4Q.44.350.100.0 H4Q.44.350.100.0
E4Q.44.350.115.0 H4Q.44.350.115.0
E4Q.44.350.125.0 H4Q.44.350.125.0
E4Q.44.350.150.0 H4Q.44.350.150.0
E4Q.44.350.160.0 H4Q.44.350.160.0
E4Q.44.350.175.0 H4Q.44.350.175.0
E4Q.44.350.200.0 H4Q.44.350.200.0
E4Q.44.350.250.0 H4Q.44.350.250.0
E4Q.44.350.300.0 H4Q.44.350.300.0
E4Q.44.350.350.0 H4Q.44.350.350.0
E4Q.44.387.075.0 H4Q.44.387.075.0
E4Q.44.387.100.0 H4Q.44.387.100.0
E4Q.44.387.115.0 H4Q.44.387.115.0
E4Q.44.387.125.0 H4Q.44.387.125.0
E4Q.44.387.150.0 H4Q.44.387.150.0
E4Q.44.387.160.0 H4Q.44.387.160.0
E4Q.44.387.175.0 H4Q.44.387.175.0
E4Q.44.387.200.0 H4Q.44.387.200.0
E4Q.44.387.250.0 H4Q.44.387.250.0
E4Q.44.387.300.0 H4Q.44.387.300.0
E4Q.44.387.350.0 H4Q.44.387.350.0
