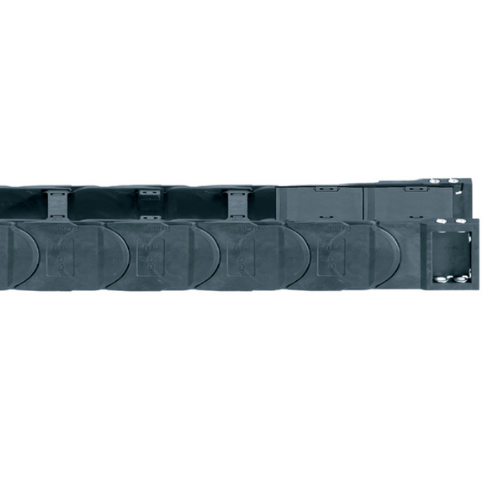

Energetická reťaz e-chain®séria 14040/14140/R18840

  1. Možnosť demontovať priečky na obidvoch stranách reťaze
  2. Otváracie vymeniteľné  veká na vonkajšom polomere
  3. Možnosť kombinovať uzatvorené a otvorené varianty
  4. Priečne klzné plochy pre prevádzku "na boku"
  5. Široké plastové priečky - vhodné pre káble
  6. Rôzne možnosti vnútorného členenia
  7. Výkyvné a nevýkyvné koncovky k dispozícii
  8. Koncovky KMA s montážnymi bodmi na všetkých stranách
  9. Možnosť integrovať hrebene na odľahčenie ťažných síl káblov a hadíc
  10. Nová, pevnejšia verzia vo vyhotovením na "pero a drážku"
  11. Možnosť dodať so spätným/obojstranným polomerom ohybu RBR!
Certifikáty a normy: RoHS 2 2011_65_EU REACH
14040 / 14140
 R18840
série 14040_14140 Serie_R18840
Vnútorná šírka Bi: 50 až 600 mm
Polomer ohybu R: 135 až 500 mm
Rozteč: 91 mm na článok = 11 článkov / m
 Vnútorná šírka Bi: 75 až 462 mm
Polomer ohybu R: 150 až 500 mm
Rozteč: 91 mm na článkov = 11 článkov / m
Samonosné pojazdy
Závislosť samonosnej dĺžky od dodatočného zaťaženia
Os X: Samonosná dĺžka v m Osa FLB/FLG
Os Y: Hmotnosť náplne v kg/m
Dolná stupnica: Pojazd S v m
FLB = Samonosná s povoleným priehybom
FLG = Samonosný s priamou hornou vetvou

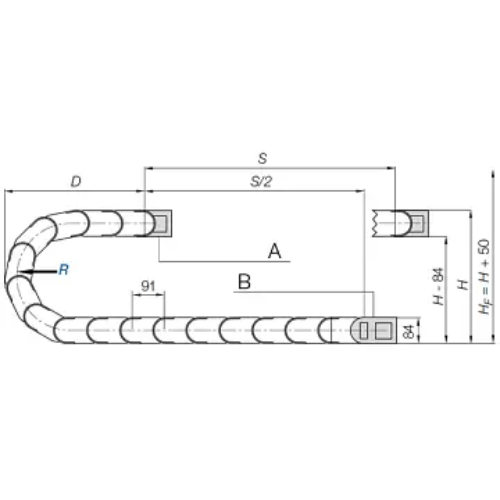

Serie_14040_14140_R18840 výkres A1 = Pohyblivý koniec
A2 = Pevný koniec
Rozteč: 91 mm
Články na m: 11
Pojazd: S
Dĺžka reťaze = S/2 + K
R 135*
 150 175
 200
 250
 300
 400
 500
H 360
 385
 435
 485
 585
 685
 885
 1085
D 270
 285
 310
 335
 385
 435
 535
 635
K 650
 750
 825
 900
 1050
 1225
 1450
 1775
Kedy použiť:  Kedy zvoliť inú:
  • ak môže byť zníženie hmotnosti a ceny doprevádzané kompromisom v stabilite
  • ak sa vyžaduje reťaz e-chain/e-tube s vnútornou výškou 56 mm
  • ak je požadovaná vnútorná šírka až 600 mm
  • pre samonosné dĺžky až do 4,0 m a plniace hmotnosti až do 40 kg/m
  • pre pojazdy do 150 m
  • vhodné tiež pre bočné, stojace a závesné aplikácie
  • ak je požadovaná tichá verzia
    » séria E6.52
  • ak vyžaduje bočná aplikácia veľké samonosné dĺžky
    » séria E4.56
  • ak požadujete dlhšie samonosné pojazdy a dlhšie pojazdové vzdialenosti
    » séria E4.56
Koncovky

Koncovka, KMA "otočná"
Koncovka, KMA "poistná"
Koncovka KMA otočná série 14040_14140_R18840 výkres
 koncovka KMA pojistná série 14040_14140_R18840 výkres
  • pre horizontálne aplikácie
  • kývnie vzhľadom k prvému článku
  • voliteľný C-profil
  • koróziivzdorné
  • univerzálna montáž
  • pre krátke a dlhé dráhy
  • pre vertikálne aplikácie
  • bez výkyvu vzhľadom k prvému článku
  • voliteľný C-profil
  • koróziivzdorné
  • univerzálna montáž
  • pre extrémne zrychlenie
