Séria E4.112 / R4.112

energetický řetěz_trubka série E4.112_R4.112
OPÝTAŤ SA / ODOSLAŤ DOPYT

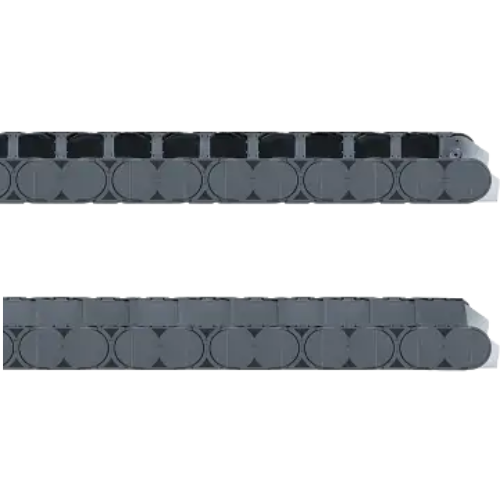

Energetická reťaz e-chain® E4.112
Energetická rúra e-tube R4.112

  • Vhodné pro nejnáročnější úkoly a velké plnění
  • Oboustranně otevíratelné
  • K dispozici jako plně uzavřené trubky e-tube a řetěz e-chain
  • Velké samonosné délky a plnicí hmotnost
  • Pro krátké pojezdy
  • Rozsáhlé příslušenství

Certifikáty a normy: RoHS 2 2011_65_EU REACH

Kedy použiť Kedy zvoliť inú:
  • ak je požadovaná robustná energetická reťaz/rúra e-tube s vnútornou výškou výškou 108 mm
  • ak je požadovaná vnútorná šírka až 400 mm
  • pre samonosné dĺžky až do 6,5 m a plniace hmotnosti až do 85 kg/m
  • pre pojazdy do 450 m
  • pre veľmi dlhé samonosné dĺžky a hmotnosti náplne
  • vhodné tiež pre bočné, stojace a závesné aplikácie
  • ak požadujete reťaz pre náročné prostredie
    » séria 800
  • ak požadujte odľahčenú verziu
    » séria 1640
E4.112 R4.112
Serie_E4.112 Serie R4.112
Vnútorná šírka Bi: 50 až 600 mm
Polomer ohybu R: 150 až 1000 mm
Rozteč: 46 mm na článok = 7 článkov / m		 Vnútorná šírka Bi: 50 až 400 mm
Polomer ohybu R: 150 až 1000 mm
Rozteč: 46 mm na článok = 7 článkov / m

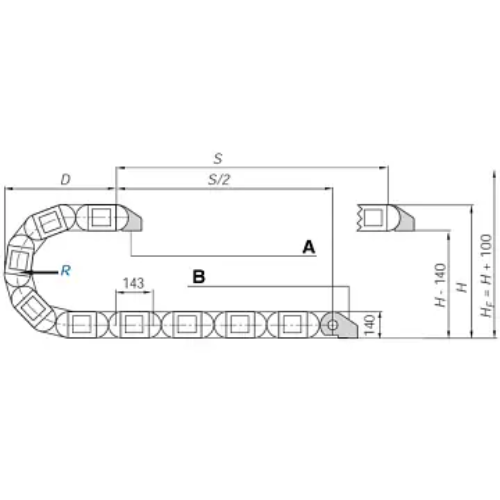

R4.112_E4.112 diagram Samonosný pojazd
Závislosť samonosnej dĺžky od dodatočného zaťaženia.
Os X: Samonosná dĺžka v m: FLB/FLG
Os Y: Dodatočné zaťaženie v kg/m
FLG = Samonosná dĺžka bez priehybu hornej vetvy
FLB = Samonosná dĺžka s max. povoleným priehybom
Serie_E4.112_R4.112 A = pohyblivý koniec
B = pevný koniec
Rozteč: 143 mm na článok
Počet článkov na meter: 9
Pojazd: S
Dĺžka reťaze: S/2 + K
R
 200
 250
 300
 350
 400
 450
 500
 550
 600
 750
 1000
H 545 645 745 845 945 1045 1145 1245 1345 1645 2145
D 415 465 515 565 615 665 715 765 815 965 1215
K 915 1075 1230 1390 1545 1700 1860 2015 2175 2645 3430
Koncovky
série E4.112_R4.112 koncovka Série E4.112_R4.112 koncovka výkres
  • pre otočné pripojenia
  • podobná sada (2-dielna) pre všetky šírky reťaze
  • elektricky vodivé

Rozmerová rada

Rozmerová rada pre E4.112 / H4.112 / R4.112
Obj.číslo
 Bi[mm]
 Ba[mm]
E4.112/H4.112.05.R.0 50 102
E4.112/H4.112.06.R.0 65 117
E4.112/H4.112.07.R.0 75 127
E4.112/H4.112.08.R.0 87 139
E4.112/H4.112.10.R.0 100 152
E4.112/H4.112.11.R.0 112 164
E4.112/H4.112.12.R.0 125 177
E4.112/H4.112.13.R.0 137 189
E4.112/H4.112.15.R.0 150 202
E4.112/H4.112.16.R.0 162 214
E4.112/H4.112.17.R.0 175 227
E4.112/H4.112.18.R.0 187 239
E4.112/H4.112/R4.112.20.R.0 200 252
E4.112/H4.112.21.R.0 212 264
E4.112/H4.112.22.R.0 225 277
E4.112/H4.112.23.R.0 237 289
E4.112/H4.112/R4.112.25.R.0 250 302
E4.112/H4.112.26.R.0 262 314
E4.112/H4.112.27.R.0 275 327
E4.112/H4.112.28.R.0 287 339
E4.112/H4.112/R4.112.30.R.0 300 352
E4.112/H4.112.31.R.0 312 364
E4.112/H4.112.32.R.0 325 377
E4.112/H4.112.33.R.0 337 389
E4.112/H4.112/R4.112.35.R.0 350 402
E4.112/H4.112.36.R.0 362 414
E4.112/H4.112.37.R.0 375 427
E4.112/H4.112.38.R.0 387 439
E4.112/H4.112/R4.112.40.R.0 400 452
E4.112/H4.112.41.R.0 412 464
E4.112/H4.112.42.R.0 425 477
E4.112/H4.112.43.R.0 437 489
E4.112/H4.112.45.R.0 450 502
E4.112/H4.112.46.R.0 462 514
E4.112/H4.112.47.R.0 475 527
E4.112/H4.112.48.R.0 487 539
E4.112/H4.112/R4.112.50.R.0 500 552
E4.112/H4.112.51.R.0 512 564
E4.112/H4.112.52.R.0 525 577
E4.112/H4.112.53.R.0 537 589
E4.112/H4.112.55.R.0 550 602
E4.112/H4.112.60.R.0 600 652

Objednávací kľúč

🔑 Objednávací kľúč
